Swing Gate Operator twist 350
twist 350

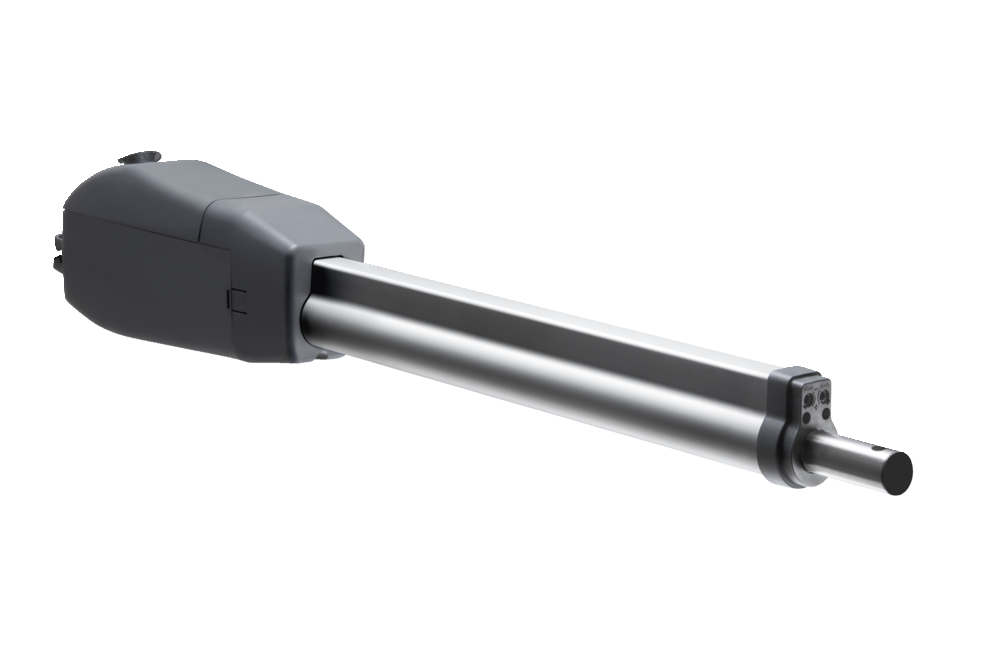

The powerful swing gate operator for gates up to 4 m leaf width or 700 kg leaf weight
The twist 350 from SOMMER is a particularly powerful swing gate operator, ideal for single- or double-leaf gates with up to 700 kg weight or a leaf width of 4 m, universally suitable for left- and right-handed installation, with smooth soft operation, high safety, and intelligent control.
Technical data
| twist 350 | |
|---|---|
| Gate weight max. | 700 kg |
| Max. gate leaf width | 4,000 mm |
| Max. gate filling | 100 % |
| Rated voltage range 1 | 220-240 V |
| Rated frequency | 50-60 Hz |
| Motor voltage | DC 24 V |
| Max. Thrust speed | 18 mm/s |
| Max. Opening angle | 121 ° |
| Number of radio channels | 2 |
| Motor duty cycle | ED 40% S3 |
| Protection class | IP44 |
| Protection control unit | IP65 |
| Temperature min. | -30 °C |
| Temperature max. | 70 °C |
Product advantages
Flexible
- universally suitable for DIN left and DIN right
- single- and double-leaf operation as well as mixed operation with twist 200 E/EL and twist XL possible
- suitable for closed gate panels
- suitable for outward-opening gates with special fittings
- microprocessor control with a wide range of settings, such as pedestrian gate function, automatic closing, adjustable speed and pre-warning time, and adjustable behavior when encountering an obstacle (full or partial reversal)
- interface for TorMinal programming device
- fast installation and simple electrical connection
Safe
- the patented SOMMER braking system makes the operator highly resistant – even under extreme forces of up to 2 tons, e.g. due to wind load or vandalism
- self-locking without electric lock up to 3.5 m
- accident protection through electronically controlled force measurement with DPS (Dynamic Power System)
- operator can be manually released in any position (e.g. in case of power failure)
- connections for safety devices such as warning light and photocell (2- and 4-wire), as well as for an external device (DC 24 V), potential-free relay contact
Innovative
- modern, elegant design
- controlled soft start/stop in ramp form without loss of force ensures smooth and gate-friendly movement
Determine A-B dimensions and set end positions
The swing gate operator twist 200 E is used as an example to show how to determine the A-B dimensions and how to set the end positions. The diagram can be transferred to the swing gate operators twist M, twist ML, twist 200 EL, twist 350 and twist XL. The possible A-B dimensions can be found in the A-B dimension tables of the respective assembly and operating instructions. It is shown how the travel length can be extended and shortened with the setscrews.
Fittings
Special installation situations require special fittings
SOMMER has the right post fitting for almost every installation situation. From galvanised to stainless steel, to fittings for inclined gates, we cover all areas.
This minimises difficult assembly work. Which saves money.
