Roller Shutter and Awning Operators

Benefits of SOMMER roller shutter and awning operators

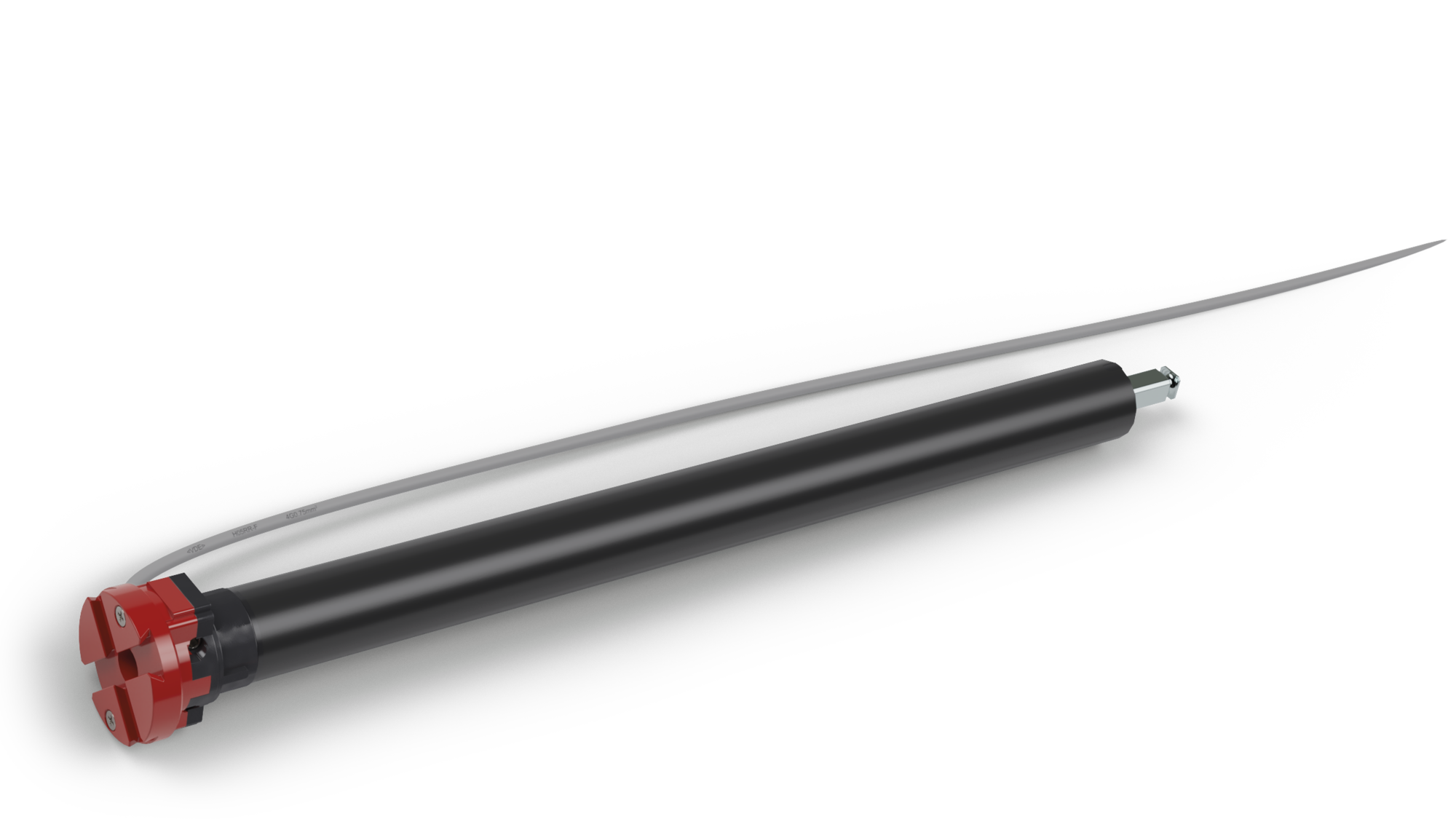

SOMMER roller shutter and awning operator: With high-quality tubular motors, roller shutters and awnings open and close automatically at the push of a button or via sensor – ideal for retrofitting or new builds, featuring smooth, quiet operation, mechanical limit switches and versatile accessories such as light sensor or timer.

Technical data

	A 10/17/35	A 10/15/45	A 20/15/45	A 40/15/45	A 50/12/45
Max. torque	10 Nm	10 Nm	20 Nm	40 Nm	50 Nm
Speed	17 rpm	15 rpm	15 rpm	15 rpm	12 rpm
Diameter	35 mm	45 mm	45 mm	45 mm	45 mm

A 10/17/35

10 Nm Max. torque
17 rpm Speed
35 mm Diameter

A 10/15/45 | Torque 10 Nm, speed 15 min −1

10 Nm Max. torque
15 rpm Speed
45 mm Diameter

A 20/15/45 | Torque 20 Nm, speed 15 min −1

20 Nm Max. torque
15 rpm Speed
45 mm Diameter

A 40/15/45 | Torque 40 Nm, speed 15 min −1

40 Nm Max. torque
15 rpm Speed
45 mm Diameter

A 50/12/45 | Torque 50 Nm, speed 12 min −1

50 Nm Max. torque
12 rpm Speed
45 mm Diameter

Product benefits

Convenient operation

With a SOMMER tubular motor, roller shutters and awnings open and close conveniently at the push of a button or automatically – no more tedious cranking.

Gentle technology

The consistent motor movement protects the mechanical components and contributes to the long-term usability of roller shutters and awnings.

Smart control

Accessories such as light sensor, wind monitor or radio receiver enable automatic closing in strong sunlight or wind, ensuring a comfortable indoor climate.

Security & timer control

With time control, roller shutters can be operated at fixed or random times. This deters burglars, as the house appears occupied even when you are away.
