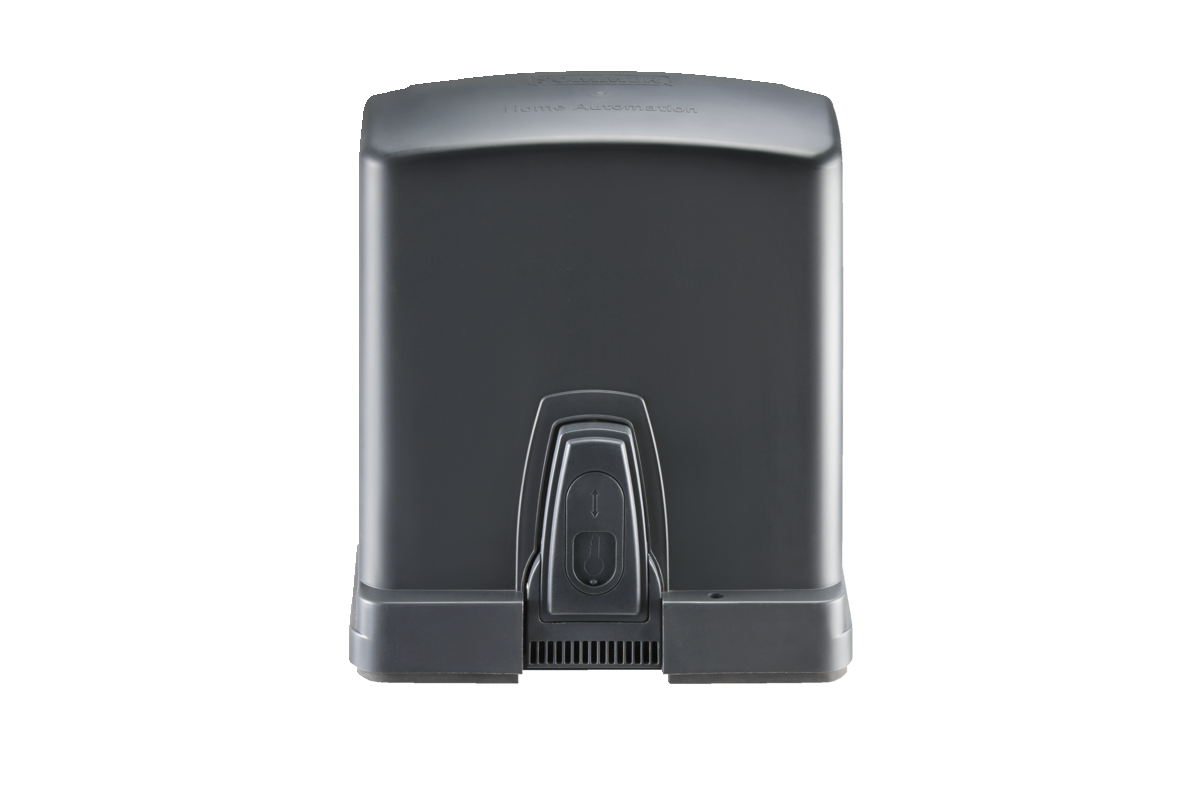

Sliding gate operator RUNner

The RUNner operator from SOMMER mounted on a sliding gate.

The powerful sliding gate operator

The RUNner also fulfils the high requirements of industrial gate systems.
Like the STArter, it is sturdy, resilient, corrosion-resistant, safe, reliable and operation is quiet.

For sliding gates with 8 m width a gate weight of 600 kg.

Sliding gate operator RUNner

Product advantages

Protection for you and your loved ones
The operator learns on its own and runs in the currently optimal way thanks to the DPS (Dynamic Power System). It adapts to the environment and always moves at the same speed. For the operator, obstacles mean that it suddenly needs more force. In this case, it stops or reverses. This prevents injury and damage to property. SOMMER also offers additional safety accessories. (Photo eyes, safety contact strips, etc.)

Long lifetime thanks to gentle soft running
The gate and the operator are preserved thanks to the "Open" and "Close" soft running. Shortly before the gate end positions, the speed decreases, which preserves the mechanics and increases the lifetime. No annoying closing noises.

Power failure - what now?
The mechanical emergency release can be activated manually to open your gate when there is a power failure. Even if there is strong contact pressure on the operator, the release lock can be triggered with low application of force and you can get to your property.

Battery pack for power failures
During a power failure, the operator can be run in emergency mode with our battery pack.

Environmental and cost efficiency
Consumption of electricity and environmental impact are low thanks to the efficient ring core transformer.

High quality and stable
The rugged glass fibre reinforced plastic rack with integrated steel core ensures maximum stability and quiet roll behaviour.

Functions which make daily life easier
The partial opening function can be used to open a part of a gate and reach the property by bike, for example.
With the automatic closing function, you can be sure that the gate is always locked behind you. After the photo eye is passed, the gate automatically closes after a set time.

Additional equipment

You can create your own optional value-added product with our additional equipment. The modular system structure makes it possible to expand the SOMMER RUNner with countless accessories in line with the "plug and play" principle. All accessories are easy to install since sockets are colour-coded and exactly labelled.

Battery pack SOMMER
Emergency power supply

Battery pack

In the event of a power failure, the battery pack supplies energy to the gate operator for up to 12 hours with a maximum of 10 gate cycles (OPEN/CLOSE). The battery pack is automatically recharged during normal operation.

Technical data

RUNner single operator RUNner+ single operator
Max. gate weight 600 kg 800 kg
Max. travel 8,000 mm 12,000 mm
Max. gate inclination 5 %
Max. opening speed 210 mm/s 190 mm/s
Max. torque 20 Nm 28 Nm
Power consumption (standby) 0.5 W 0.5 W
Nominal voltage range 1 220-240 V 220-240 V
Rated frequency 50-60 Hz 50-60 Hz
Temperature min. -30 °C -30 °C
Temperature max. 50 °C 50 °C
Protection class IP54 IP54
Radio system SOMloq2 SOMloq2
Radio frequency 868.95 MHz 868.95 MHz
Radio memory locations 40 40
RUNner single operator
  • 8,000 mm Max. travel
  • 600 kg Max. gate weight
  • 210 mm/s Max. opening speed
RUNner set
  • 8,000 mm Max. travel
  • 600 kg Max. gate weight
  • 210 mm/s Max. opening speed
RUNner+ single operator
  • 12,000 mm Max. travel
  • 800 kg Max. gate weight
  • 190 mm/s Max. opening speed
RUNner+ set
  • 12,000 mm Max. travel
  • 800 kg Max. gate weight
  • 190 mm/s Max. opening speed

Active safety contact strips must be used on the main and auxiliary closing edges. Sliding gates must not be operated together with the RUNner+ without safety contact strips!
