Swing gate operator twist AM set 1-leaf
Swing gate operator twist AM set 1-leaf
twist AM set 1-leaf
868,95MHz SOMMER version
grey Euro power plug
incl. 1x 4019V000 1x 5069V001 etc.
Article number:
3734V000
Technical data
Gate weight max.
250 kg
Max. gate leaf width
2,500 mm
Max. gate filling
100 %
Rated voltage range 1
220-240 V
Rated frequency
50-60 Hz
Motor voltage
DC 24 V
Max. Opening angle
130 °
Number of radio channels
4
Motor duty cycle
ED 15% S3
Temperature min.
-25 °C
Temperature max.
65 °C

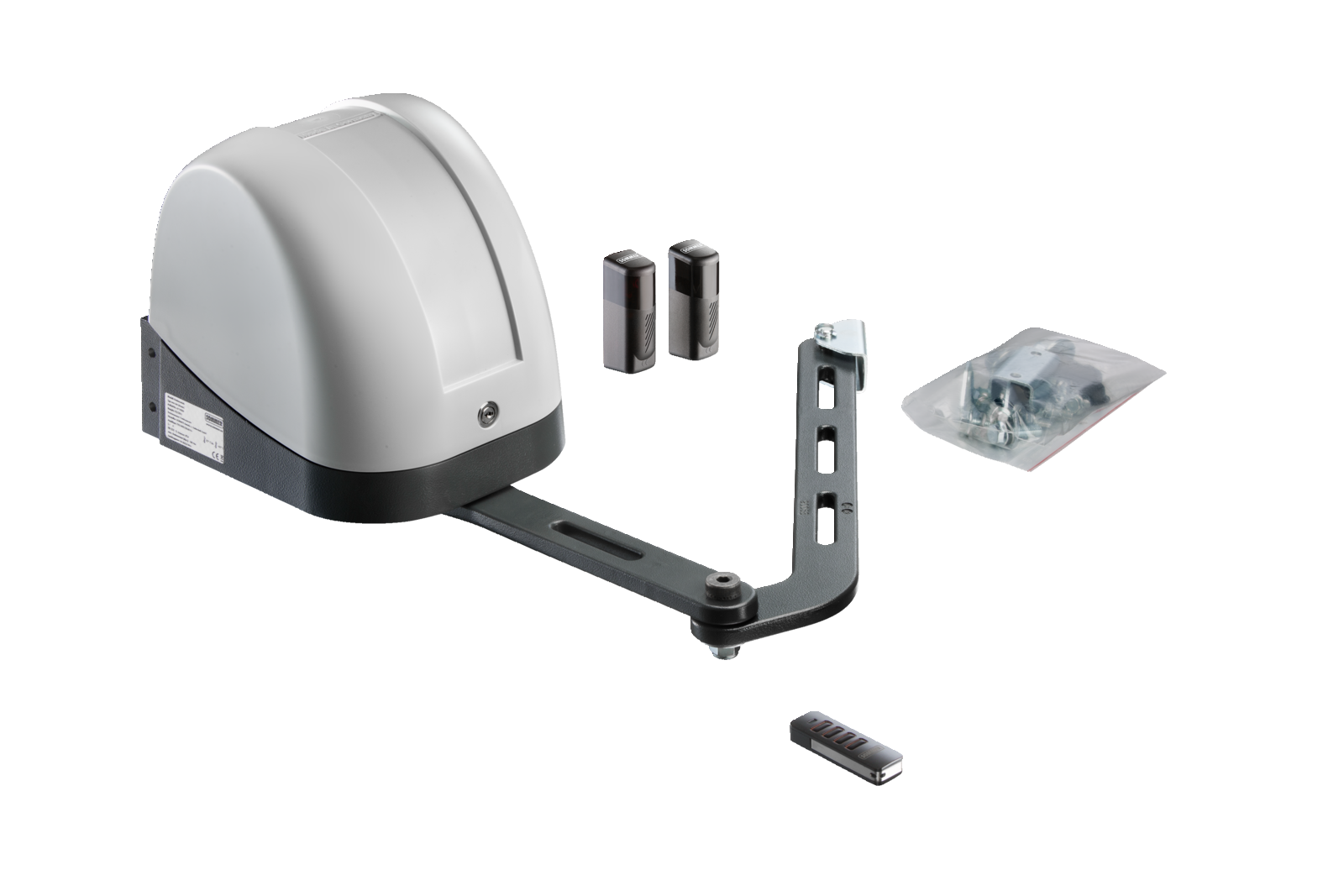

Properties
1× twist AM master operator with control unit
Radio receiver FM 868.95 MHz (SOMloq2)
Pearl Vibe 4-command handheld transmitter (# 4019V000) with noticeable feedback of radio commands via vibration
One-way photocell, can rotate 180°, 4-wire (# 7029V000)
Gate post fitting, galvanised steel
Gate leaf fitting, U-shaped, galvanised steel
Downloads
Checklist
Language
English, Hungarian, Italian, Dutch, Polish, Russian, Swedish
Type
PDF
Size
420.46 KB
Assembly Instructions
Language
English
Type
PDF
Size
22.22 MB
CadData
Language
English, German, French, Hungarian, Italian, Dutch, Polish, Russian, Swedish
Type
ZIP
Size
42.12 MB
