Swing gate operator twist UG

Swing gate operator twist UG

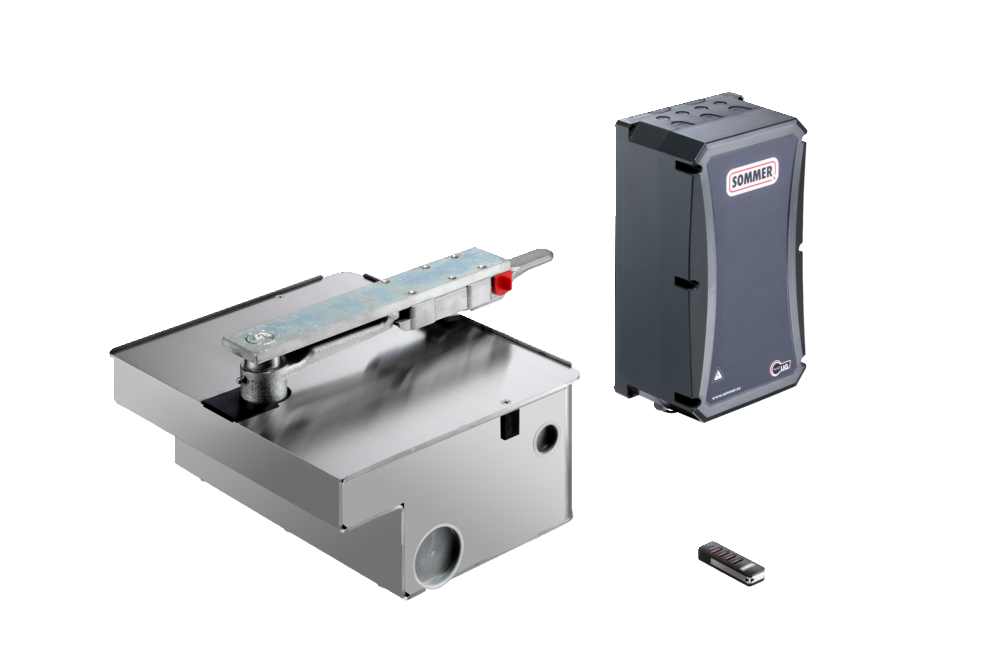

twist UG
For swing gates with a maximum wing width of 3.5 m and a maximum wing weight of 350 kg.

Ideal for swing gates where the operator should not be seen.

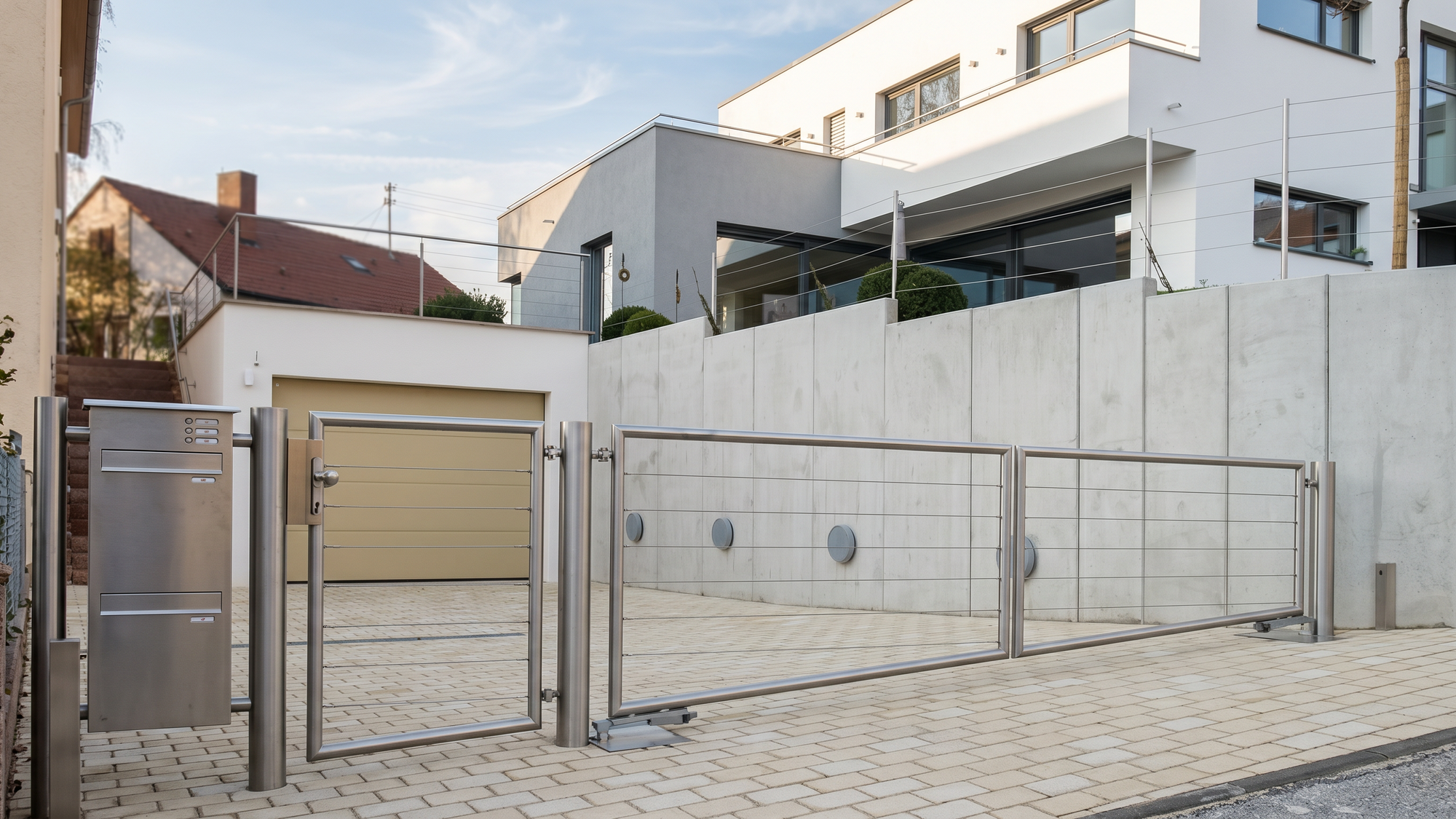

Swing gate operator twist UG
twist UG+
For swing gates with a maximum wing width of 3.5 m and a maximum wing weight of 600 kg

Even stronger than the twist UG: The twist UG+ is ideal for heavy swing gates with a weight of up to 600 kg and where you don’t want the operator to be visible!

The use of active safety contact strips on the main and secondary closing edges is mandatory for the twist UG+.

Product advantages

Invisible in attractive gates
The operator is mounted in the ground and does not affect the appearance of the gate in any way. The design of the gate is accentuated.

Safety thanks to encrypted radio control system
The SOMloq2 bidirectional radio control system transmits radio signals in both directions. Feedback on the send command or the gate position can be received. The rolling code is encrypted with 128 bits.

Power failure – what now?
The mechanical emergency release can be activated manually with a key to open your gate when there is a power failure. Even if there is strong contact pressure on the operator, the release lock can be triggered with low application of force and you can get to your property. Alternatively, the operator can be run in emergency mode with our battery pack.

Simple retrofitting of accessories
Thanks to our modular system, accessories can be installed quickly and easily at any time.
Connection options for 8k2 safety contact strips are already integrated on the control unit as standard.
With the existing multi-function relay, you can connect and control external devices (e.g. yard light). You can also extend the convenience and safety functions of your operator at a later time if your requirements change.

Functions which make daily life easier
The walk-through function can be used to open only one gate wing and reach the property by bike, for example. This makes an additional garden gate unnecessary, making it possible to fully utilise the whole width of your driveway.
With the automatic closing function, you can be sure that the gate is always locked behind you. After the photocell is passed, the gate automatically closes after a set time.
The operator uses the warning light to signal whether and when gate maintenance is needed. This considerably increases the service life of the gate and the operator.

Save money and protect the environment
The energy-saving operator consumes about 0.5 watt of energy a year in standby mode, amounting to about €1.80 in electricity costs. It is thereby not only inexpensive to operate, but also environmentally-friendly.

Long service life thanks to gentle soft run
The gate and the operator are preserved thanks to the "Open" and "Close" soft run features. Shortly before the gate end positions, the speed decreases, which preserves the mechanics and increases the service life. No annoying closing noises.

Reliable with frequent use
The operator is well-suited for multiple-family houses. Operating time 40% - that means it is in operation for 4 minutes out of 10.

Carefree with high-quality materials
The housing consists of stainless steel and stainless aluminium which withstands stress caused by weather. Optionally available with galvanised steel.

Additional equipment

With our additional equipment, you can generate your own optional added value. The modular system design enables you to expand the SOMMER door operator with numerous accessories according to the "plug and play" principle. All accessories can be easily assembled, as the slots are color-coded and labeled exactly.

Speichererweiterung von SOMMER
Memory expansion

Memo

Serves to expand the memory to 450 hand-held transmitter commands. If service is required, saved data can simply be transferred to a new drive.

Battery pack SOMMER
Emergency power supply

Battery pack

In the event of a power failure, the battery pack supplies energy to the gate operator for up to 12 hours with a maximum of 10 gate cycles (OPEN/CLOSE). The battery pack is automatically recharged during normal operation.

Technical data

twist UG set 1-leaf DIN left, stainless steel twist UG+ set 1-leaf DIN left, stainless steel
Max. gate weight 350 kg 600 kg
Max. gate leaf width 3,500 mm 3,500 mm
Max. gate filling 90 % 90 %
Rated voltage range 1 220-240 V
Rated frequency 50-60 Hz 50-60 Hz
Motor voltage DC 24 V DC 24 V
Max. Opening angle 105 ° 105 °
Number of radio channels 4 4
Duty cycle after S3 in % ED 40% S3 ED 40% S3
Temperature min. -25 °C -25 °C
Temperature max. 65 °C 65 °C
twist UG set 1-leaf DIN left, stainless steel
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG set 1-leaf DIN left, hot galvanized
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG set 1-leaf DIN right, stainless steel
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG set 1-leaf DIN right, Hot- dip galvanized
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG set 2-leaf, stainless steel
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG set 2-leaf, hot galvanized
  • 350 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 1-leaf DIN left, stainless steel
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 1-leaf DIN left, hot galvanized
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 1-leaf DIN right, stainless steel
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 1-leaf DIN right, galvanized
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 2-leaf, stainless steel
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width
twist UG+ set 2-leaf, hot galvanized
  • 600 kg Max. gate weight
  • 3,500 mm Max. gate leaf width

FAQ

Frequently asked questions and answers

The installation and operating manual for the twist UG+ can be downloaded from the download portal. Go to downloads

The difference between the swing gate operators twist UG and twist UG+ is the gate weight per wing. The twist UG is for swing gates with a gate wing weight of up to 350 kg, the twist UG+ for swing gates with a gate wing weight of up to 600 kg.

The swing gate operator twist UG+ is ideal for heavy swing gates where you don’t want the operator to be visible. The operator can be mounted between or in front of the gate posts. It is important to make sure that the rotation point of the gate is also the rotation point of the operator.
