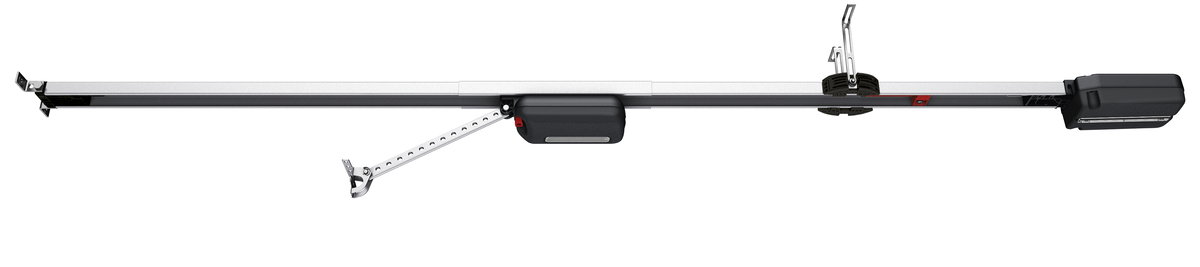

Intelligent garage door operator
The SOMMER base+ garage door operator features our most advanced garage door control unit with various optimised speed profiles and the option of precision setting of the operating forces. The garage door operator also learns continuously and automatically and adjusts the door operation accordingly.
Unsure which of our garage door operators is right for your garage door? We will help you to find the right door operator for your garage door and discover other accessory options in three simple steps.
Thanks to technology that protects the gearbox, the garage door drive is extremely quiet, low-wear and has a very long service life.
The system monitors the closing forces in accordance with EN 12453 using electronic motor monitoring. This control mechanism creates maximum security.
The system reads in the required force fully automatically, continuously adapts it to the external conditions and thus ensures maximum safety.
|S 9060 base+||S 9080 base+||S 9110 base+|
|Max. pull and pushing force||600 N||800 N||1,100 N|
|Max. door width / door height sectional door||4,500 mm / 2,500 mm||6,000 mm / 2,500 mm||8,000 mm / 2,500 mm|
|Max. door width / door height one piece door||4,500 mm / 2,750 mm||6,000 mm / 2,750 mm||8,000 mm / 2,750 mm|
|Max. door width / door height up-and-over door||4,500 mm / 2,050 mm||6,000 mm / 2,050 mm||8,000 mm / 2,050 mm|
|Max. door width / door height side-opening sectional door/side-opening door||4,500 mm / 2,500 mm||5,750 mm / 2,750 mm||6,850 mm / 3,000 mm|
|Travel length (standard)||2,750 mm||2,750 mm||2,750 mm|
|Max. travel length extended||4,900 mm / 2× extensions (1,096 mm)||6,000 mm / 3× extensions (1,096 mm)||7,100 mm / 4× extensions (1,096 mm)|
|Max. door weight||120 kg||160 kg||200 kg|
|Max. running speed||240 mm/s||210 mm/s||180 mm/s|
|Power consumption (power-saving mode)||0.98 W||0.98 W||0.98 W|
|Duty cycle after S3 in %||ED 40% S3||ED 40% S3||ED 40% S3|
|Number of radio memory positions||40||40||40|
|Max. recommended no. of spaces||30||50||30|
Numerous accessories for expansion (e.g. memory expansion Memo, humidity sensor Senso, locking magnet Lock, LED additional lighting Lumi+)
The assembly and operating instructions for the SOMMER base+ can be downloaded from the download portal.
How to use a hand-held transmitter from SOMMER, e.g. B. Pearl, Pearl Vibe, Pearl Status, Pearl Twin, Slider+, Slider Vibe on a SOMMER garage door operator with SOMloq2, we show in the following Video. You will find a detailed description in the assembly and operating instructions.
The HomeLink radio receiver module can be used to control drives and controls with the SOMloq2 radio system. The radio receiver module is connected via the serial interface on the carriage using Plug & Play installed.
With the SOMMER base+ garage door operator, the control housing is permanently installed at the end of the track. With the SOMMER pro+, the control housing can be mounted separately.
Yes, with the smart home solution SOMweb, door operators can be easily controlled using an app or browser on a smartphone, tablet or PC.
The SOMMER base+, SOMMER pro+ garage door operators and the RDC Vision+ roller door control are compatible with the smart Telecody Courier parcel depot.
The smart parcel deposit from SOMMER allows the deliverer to deposit a parcel in the garage. The opening height of the garage door can be determined individually. There are two security levels to choose from: The gate can be opened using the red button or an individual numerical code.
