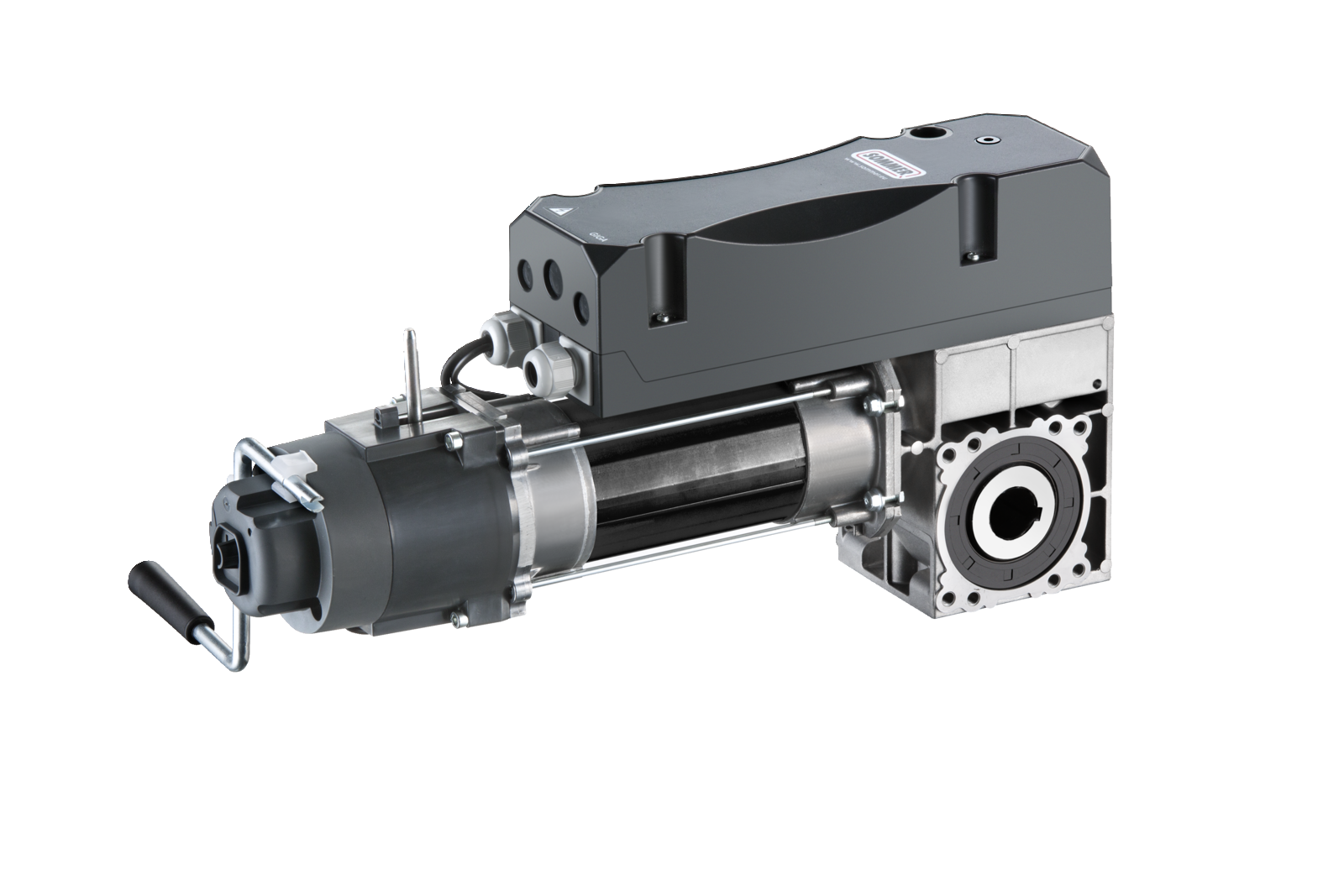

Industrial door operator GIGAspeed 115.060 HAFS1
GIGAspeed 115.060 HAFS1100-140rpm/060Nm/1,0kW, hand crank 25,0mm, E=14, Fangvorichtungintegrated frequency converter
Article number: YS11625-00001
Output speed
115 rpm
Output torque
60 N⋅m
Motor output
1 kW
Rated voltage
1~230 V
Rated frequency
50-60 Hz
Motor duty cycle
ED 60% S3
Limit stop range
14
Protection class
IP54
Temperature min.
-5 °C
Temperature max.
60 °C
Continuous sound pressure level
< 75dB(A)
Hollow shaft
25 mm
- The frequency converter is permanently mounted on the operator and precisely adjusted to it. The use of complex, large and expensive extruded sections is avoided for operators up to 1.1 kW.
- Emergency hand crank – Operators with an emergency hand crank offer a simple and cost-effective way of closing and opening doors in the event of power failure.
- Integrated safety catch with certification for doors that need to be secured against falling
- Crank Ø 10 mm
