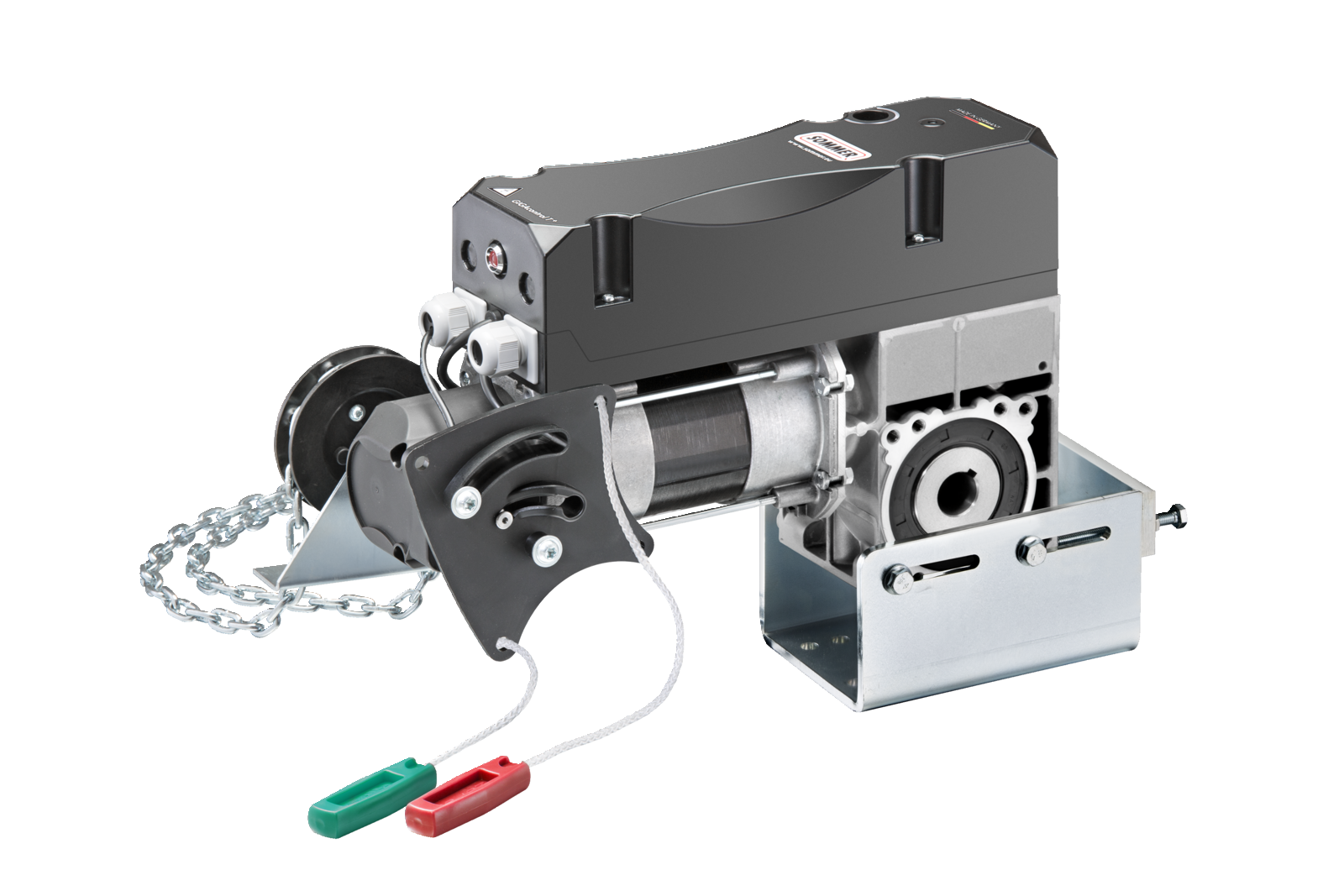

工业门开门机
产品编号: S11169-00001
速度
24 rpm
输出扭矩
120 N⋅m
额定功耗
0.55 kW
额定电压
3~230/400 V
额定频率
50-60 Hz
S3 后的工作制式 ，单位%
ED 60% S3
限位开关范围
29
防护等级
IP54
最低温度
-25 °C
最高温度
65 °C
根据工作环境确定的排放值
< 75dB(A)
d 轴接收
25.4 mm

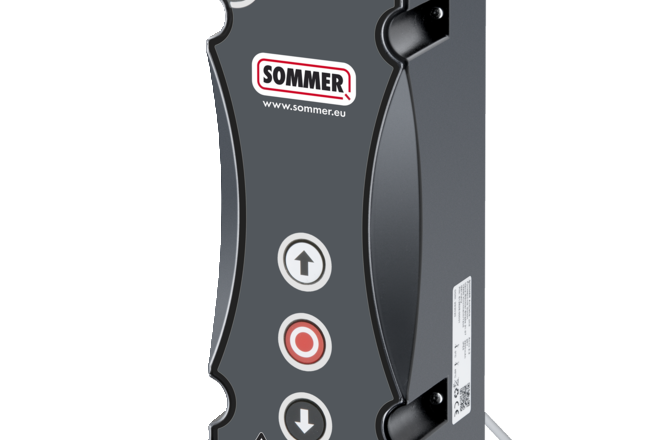

- The integrated dead man control unit of the new GIGAcontrol T+ range offers the accustomed convenience of an integrated control unit with the added option of upgrading for automatic mode.
- Emergency hand chain – The emergency chain system can be rotated in 180° units. This allows the position of the chain sprocket to be adjusted for the local conditions.
- Hoist chain DIN 766, length 7 m
- Manual taper in green and red with a 7-metre pull rope
