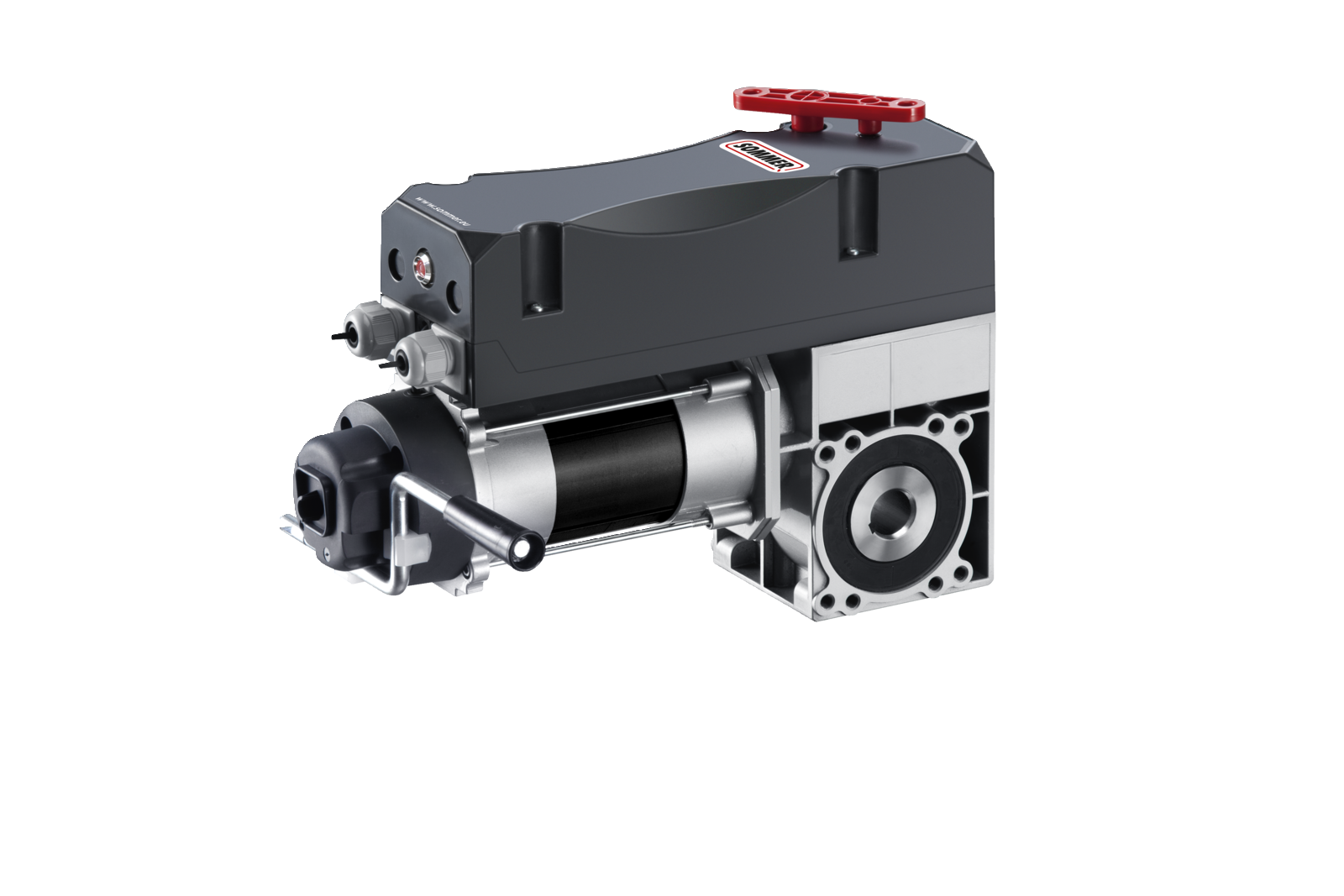

Industridörröppnare GIGAsedo 024.100 HMIT0

Artikelnummer: 9083V000

Teknisk data

Max. dörr Dörrvikt

450 kg

Max. portstorlek

30 m²

Hastighet

24 rpm

Utgående vridmoment

100 Nm

Nominell strömförbrukning

0.37 kW

Märkspänning

3~230/400 V

Betygsatt frekvens

50 Hz

Arbetscykel efter S3 i %

ED 60% S3

Gränsbrytarräckvidd

Skyddsklass

IP54

Temperatur min.

−5 °C

Temperatur max.

60 °C

Emissionsvärde enligt driftsmiljö

< 75dB(A)

d Schaktmottagning

25,4 mm

Egenskaper

Using the control unit integrated into the operator, the integrated dead man control unit GIGAcontrol T can be set from the ground with any conventional triplex sensing device.
Emergency hand crank – Operators with an emergency hand crank offer a simple and cost-effective way of closing and opening doors in the event of power failure.
Maintenance release – Disengagement of the system for servicing must be carried out by a trained technician. The release lever must only be removed by a tool.
Torque support, dimensions 253 × 40 × 3 mm
Mounting material for torque support with 2 keys Ø 25.4 mm and Ø 31.75 mm for hollow shaft and solid shaft
Manual taper in green and red with a 7-metre pull rope
Crank Ø 10 mm
Release lever
