Underground Parking Garage Door

Equipment & Design Options

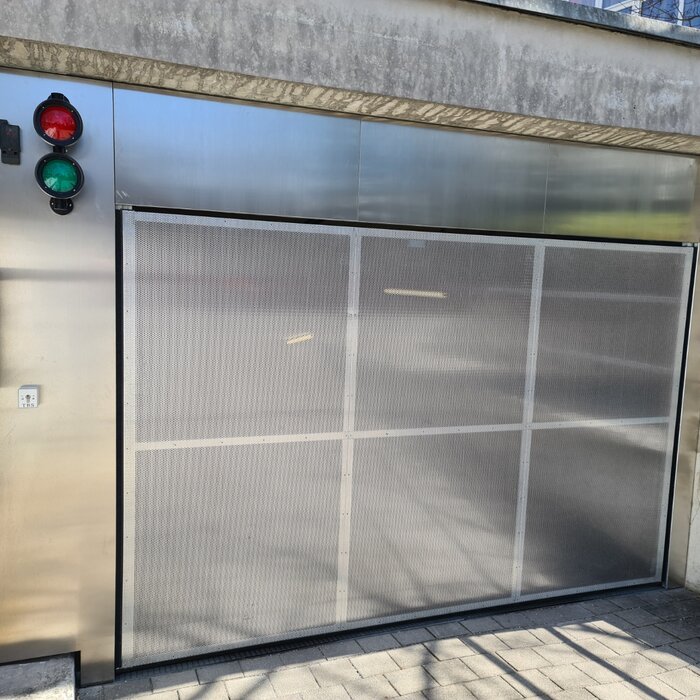

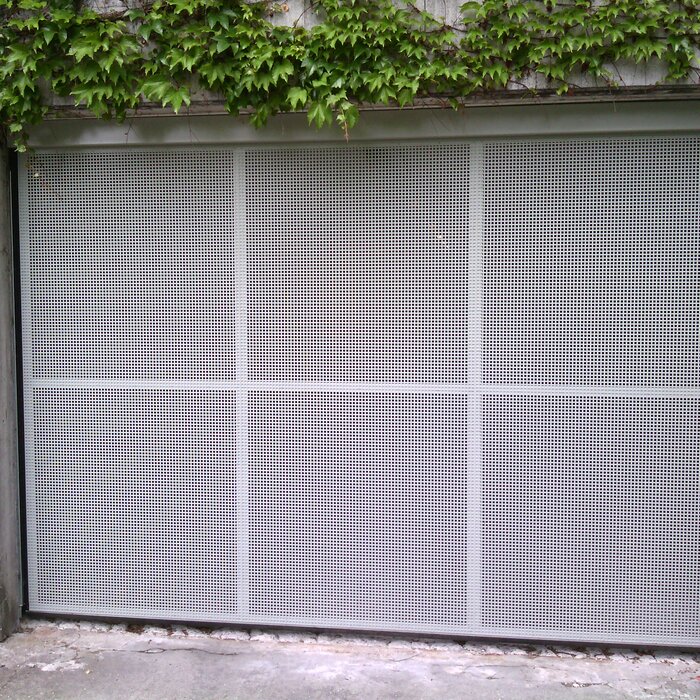

  • Special cladding options such as perforated sheet metal, metal rods, or glass
  • Cladding styles with ribs, slats, or cassette patterns for a sectional‑door look – including Gutobond surface finishes
  • Various real‑wood cladding options
  • Optional colour finishing in any RAL or NCS tone
  • Available without cladding for on‑site finishing
  • Ball‑bearing plastic rollers in the ceiling guide tracks
  • Maintenance‑free hardware

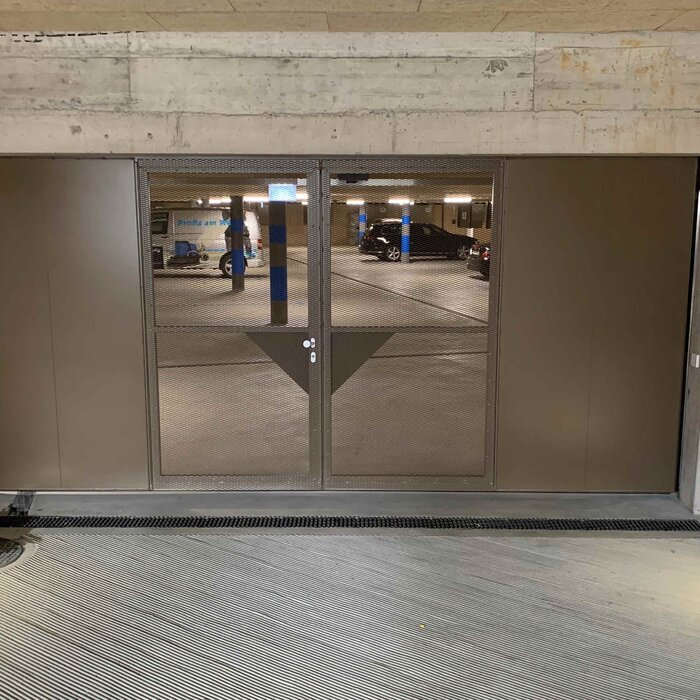

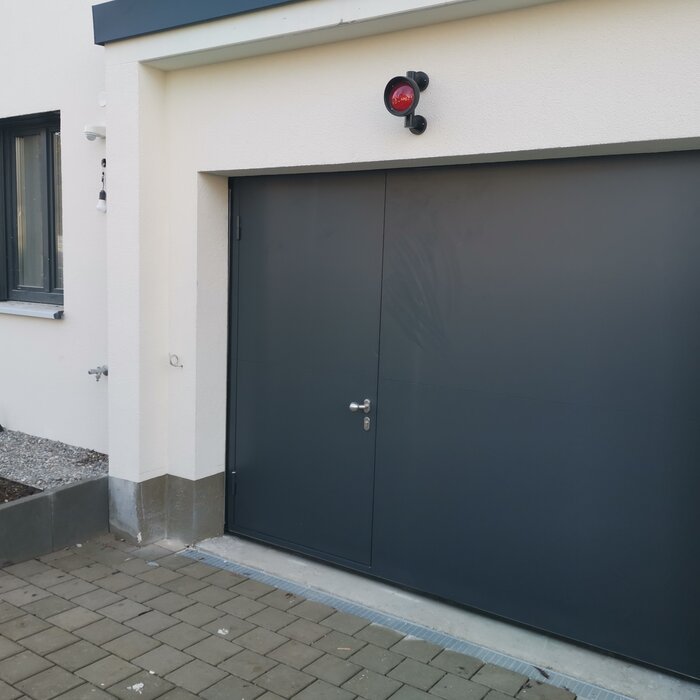

  • Matching side door or seamlessly integrated trip‑free wicket door available
Safety
  • Connection of safety light barriers and warning beacons possible
  • Automatic door locking through patented lift‑up protection
  • Safety spring assemblies providing finger‑pinch protection and safeguarding against spring breakage
  • Side locking mechanism for effective protection against forced entry
  • TÜV‑certified safety
Technical Data
  • Door width up to 800 cm, depending on configuration
  • Door height up to 300 cm
  • All intermediate sizes available within the specified range
  • Fully hot‑dip galvanised door frame and ceiling guide tracks
  • Flush façade installation possible
  • Door frame made from robust, torsion‑resistant steel box sections
  • High‑quality insulation with 40 mm CFC‑ and HCFC‑free PU rigid foam
